VSAT Mounts

U-ROX Engineering have been a trusted supplier of VSAT mount, supplying in excess of 2000 mounts to date. The final finish of the mount varies between Painted, Zinc Plated and Hot Dip Galvanized. Stress testing analysis was performed on the 1.2m Wall Mount Bracket and a Certified Engineering report was compiled, validating the structural integrity of the popular 1.2m Wall Mount.

VSAT Mounts

Drawing	Description

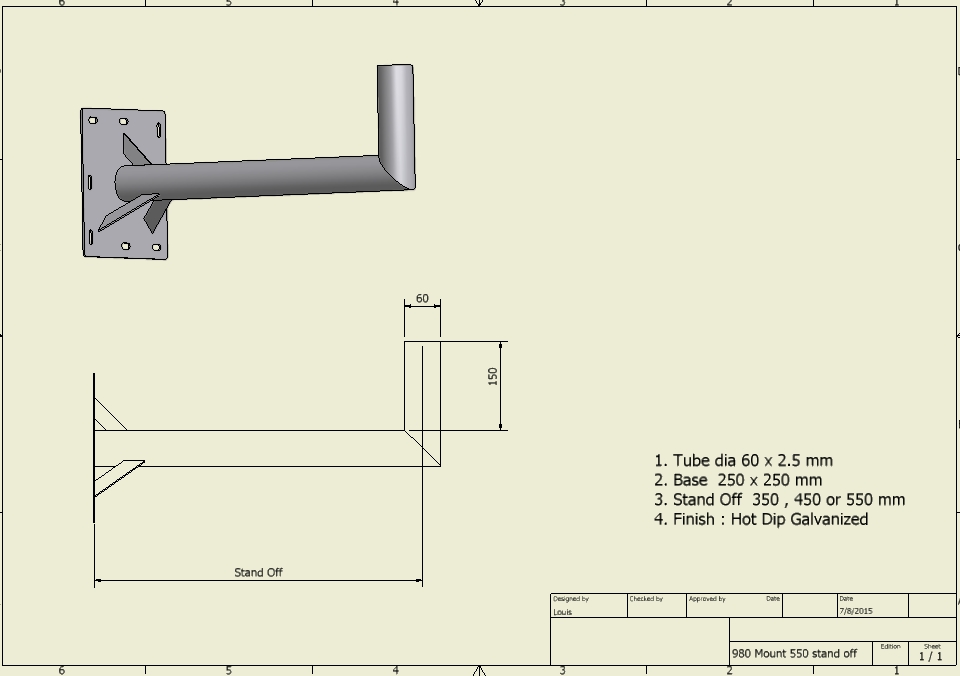

	75cmm Wall Mount Bracket for the standard 75cm Antenna typically used on Ka-Band Networks

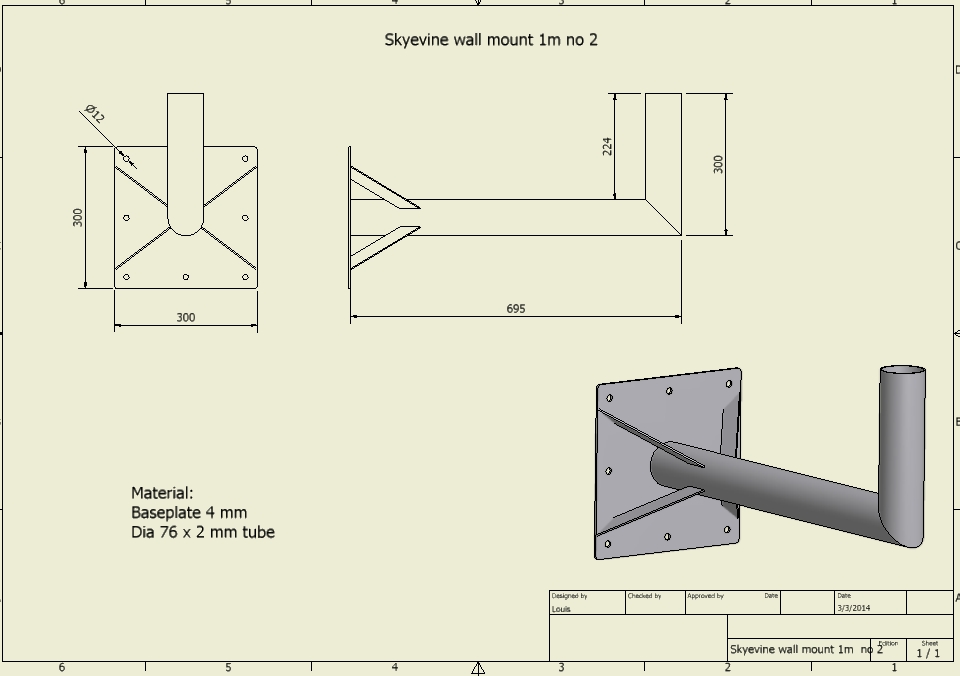

	1.0m Wall Mount Bracket for the Newtec 1m Antenna
	1.2m Wall Mount Bracket with 200m x 300m Base for the standard 1.2m Ku-Band antenna 1.2m Wall Mount Bracket with the bigger 300m x 300m Base for the standard 1.2m Ku-Band antenna also available

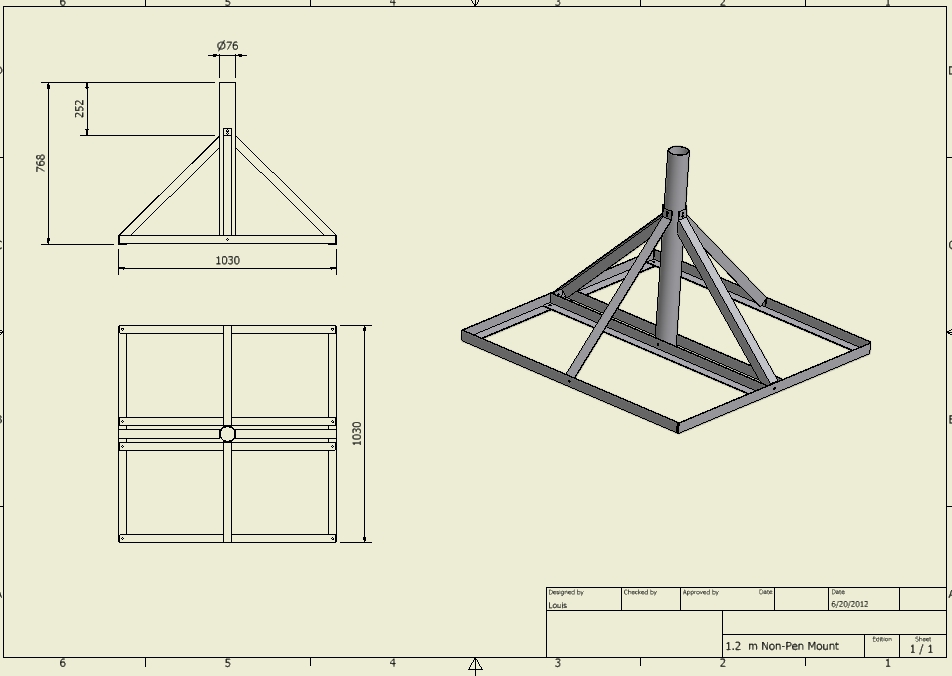

	1.2m Non Penetrating Mount with 1m x 1m Base for the standard 1.2m Ku-Band antenna and the Newtec 1m Antenna

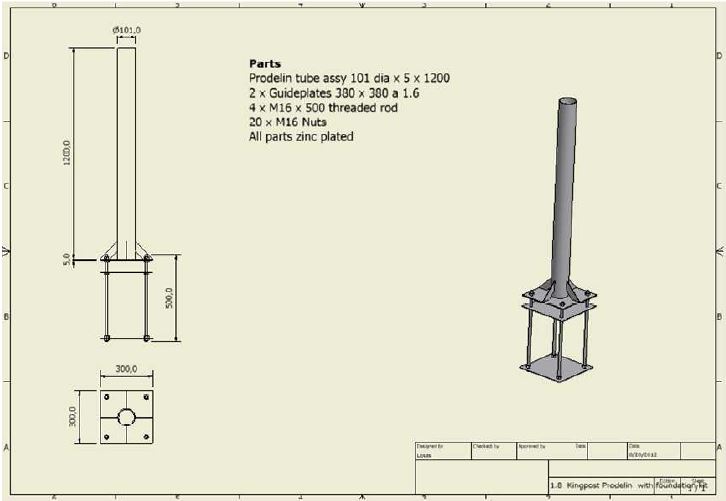

	1.8m Penetrating Mount Bracket used with a foundation kit for a concrete base to support the standard 1.8m Andrews antenna 1.8m Penetrating Mount Bracket used with a foundation kit for a concrete base to support the standard 1.8m Prodelin antenna

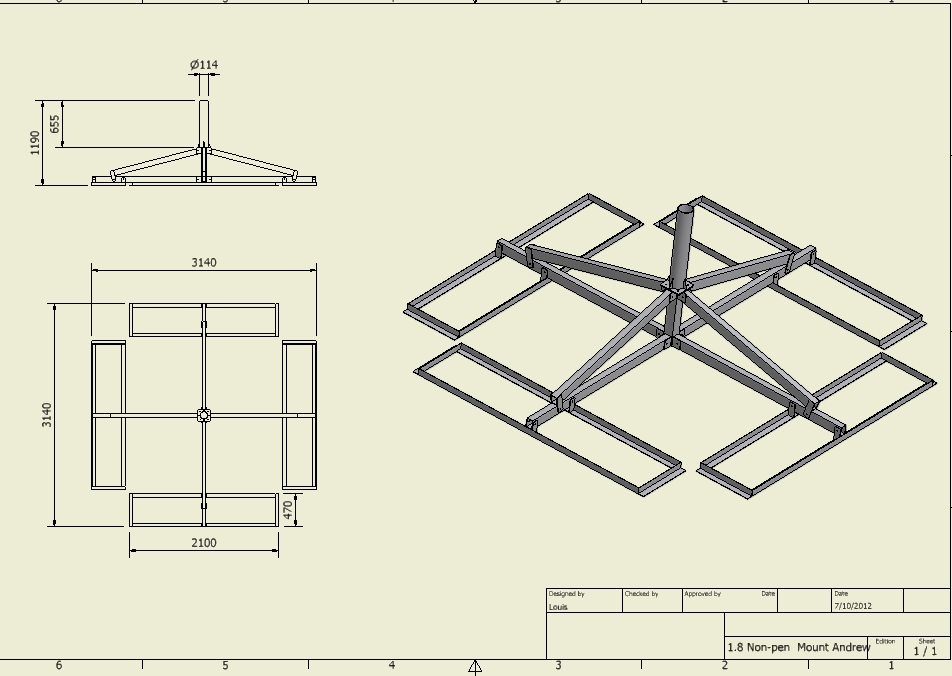

	1.8m Non Penetrating Mount with a 3m x 3m base for the standard 1.8m Andrews antenna

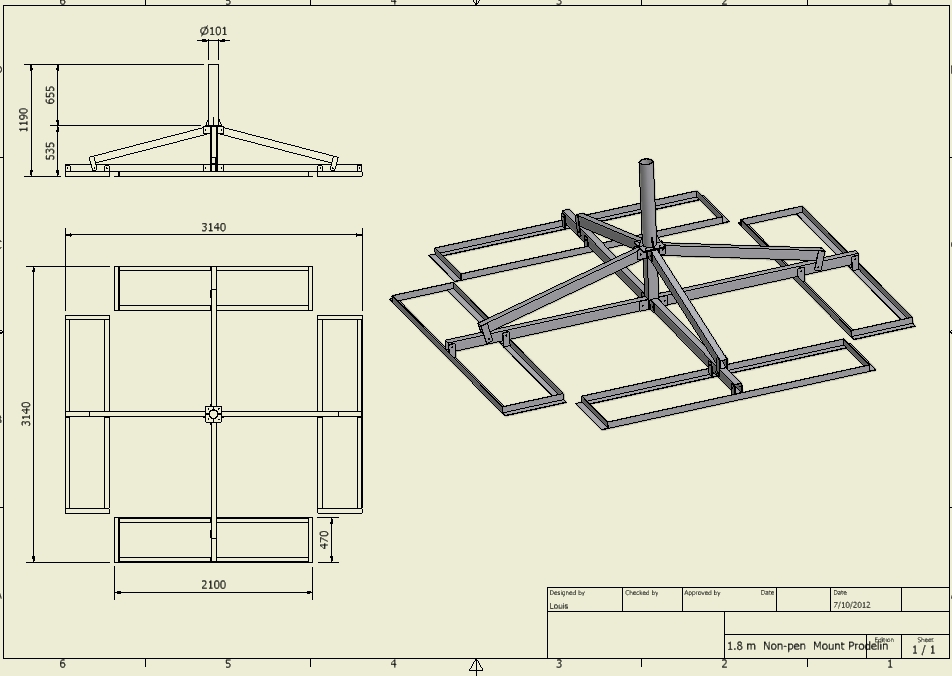

	1.8m Non Penetrating Mount with a 3m x 3m base for the standard 1.8m Prodelin antenna The main difference between the 1.8m Andrews and the 1.8m Prodelin antenna is mast diameter of the mount

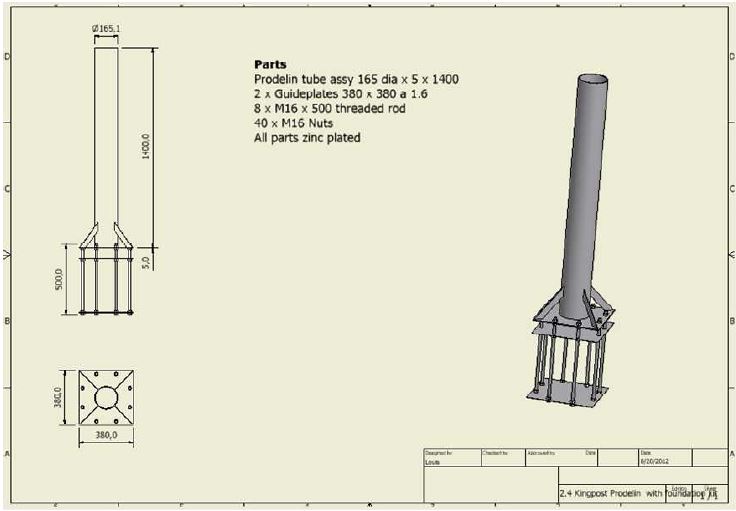

	2.4m Penetrating Mount used with a foundation kit for a concrete base to support the standard 2.4m antenna

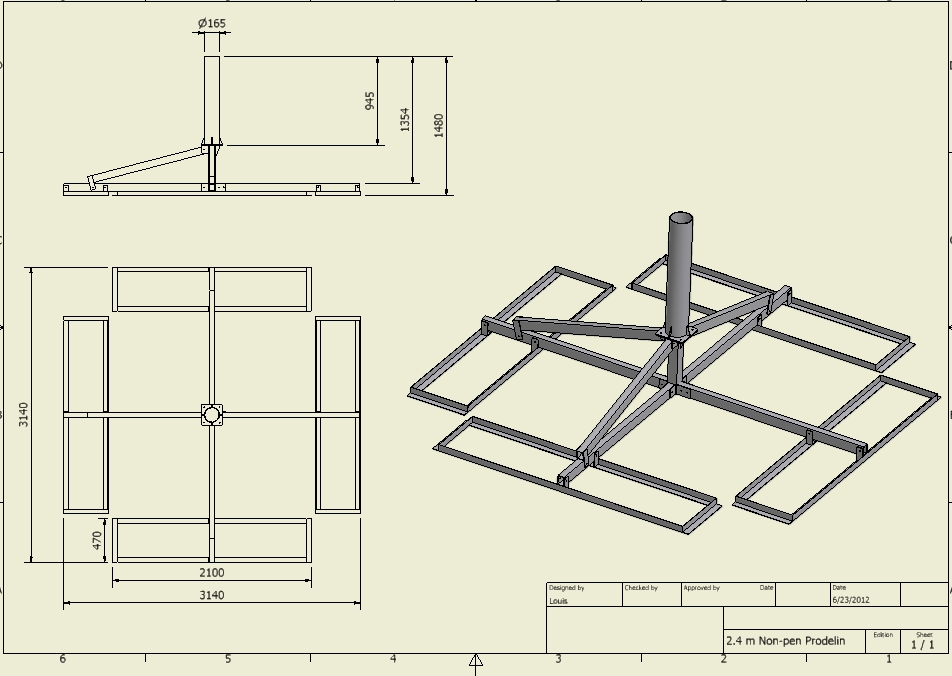

	2.4m Non Penetrating Mount with a 3m x 3m base for the standard 2.4m antenna

Mounts for Antenna sizes 3.8m to 4.5m is available on request.

Mount Accessories

Drawing	Description

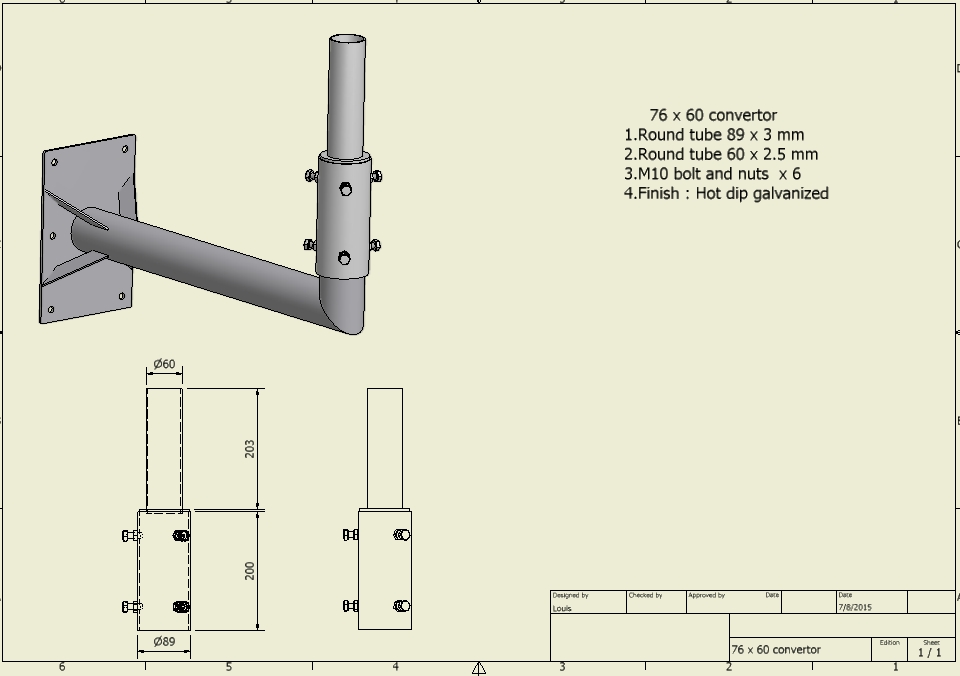

	Convertor to mount a 75cm antenna on a 1.2m Wall Mount by converting the 76cm Mast diameter to 60cm

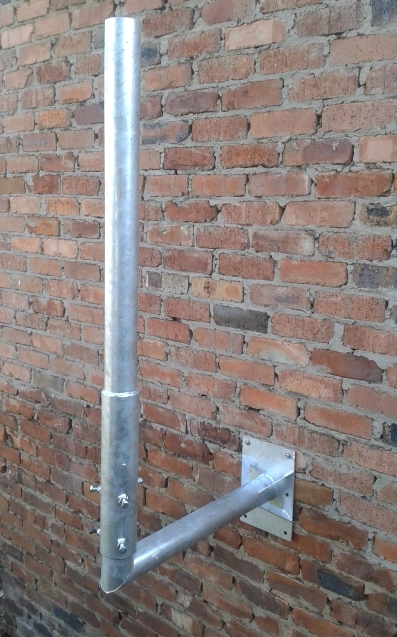

	Extension to extend the height of the standard 1.2m wall mount and 75cm Antenna wall mount. This extension is normally used in places where the antenna needs height to clear obstructions

Manual Deploy Antenna

Drawing	Description

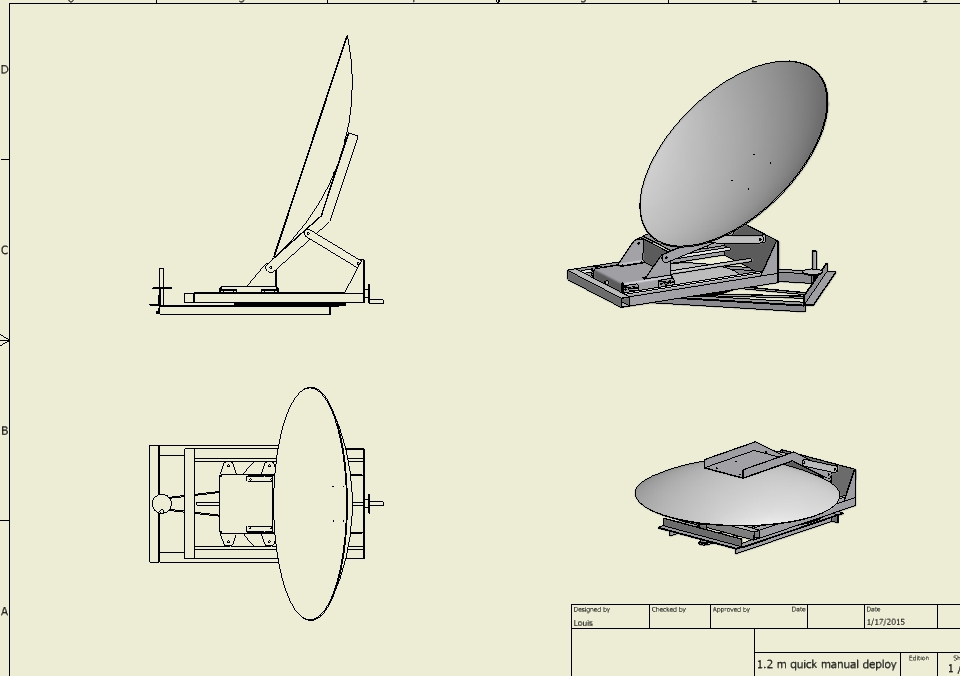

	1.2m Quick Deploy antenna that can be mounted on a trailer. The Antenna deploys and stows manually with easy operation. The mechanical operation was designed for a ACS 1.2m antenna. Price does not include the antenna

Please enquire on a pricelist
